Mobile Jack Stand By BendPak

MLS-18

SKU# 5175001

​8,164-kg. Capacity / Mobile High Jack Stand


The MLS-18 jack stand gives you the support you need, on the projects that need it most. With an ​8,164-kg. capacity for each stand you’ll never find a project too big for these heavy-duty jack stands to handle.

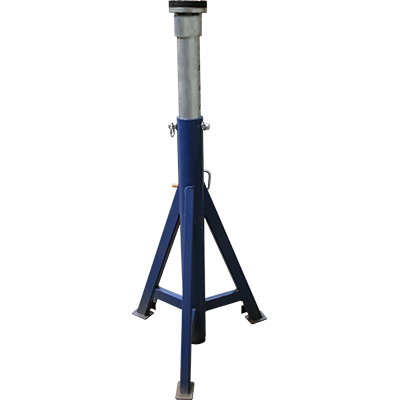

MLS-18 high-reach jack stand
User Manual Download
Sales Sheet Download
Warranty Download

High-Reach Support with High Capacity Attitude

The MLS-18 is a ​mobile high-reach jack stand that's made for the extra support of any vehicle lifted on a two-post lift. With a tripod construction, and an ​8,164-kg. weight capacity, no matter how large the project, the MLS-18​ can get the job done right.

Along with its hefty weight capacity, the versatility of the MLS-18 lies in its adjustable height and easy maneuverability and placement. The tripod design allows for an adjustable height which ranges from 1,238 mm to 1,905 mm, so you can reach ​support points over 6-feet in the air. Each height adjustment is made easy with a one inch diameter self-locking ACME screw, which allows for multiple height adjustment settings. Whether you’re lifting full-size commercial-grade vehicles, or your own personal project on a two-post lift, the MLS-18 ​jack stand will stabilize your center of balance and take the worry off your shoulders.

Working reliably together these jack stands are over-designed to be the most versatile jack stand in your shop. Made to work in tandem with several support stands placed under designated lifting points, each MLS-18 is highly mobile. With a tripod design, foldaway transport handle and 3” diameter wheels, you can pack them up or roll them over to reach even your most difficult lifting points with ease.

Features

  • 8,164-kg. max rated capacity
  • Tripod design evenly distributes weight under load
  • Each leg is equipped with an 11 sq. in. floor pad
  • Can be easily moved and placed under a vehicle by means of two 76 mm diameter wheels
  • Equipped with a foldaway transport handle
  • Center tube is spring-assisted to facilitate adjustment of the stand
  • Adjustable from 1,238 mm to 1,905 mm
  • 9 pin positions
  • 25.4 mm diameter self-locking ACME screw for fine adjustment of the stand height

Specifications

MLS-18 specs diagram
Minimum height:
48.75" (1,238 mm)
Maximum height:
74.5" (1,892 mm)
Number of pin positions:
9
Screw fine adjustment:
3.5" (89 mm)
Stroke:
25.75" (654 mm)
Base diameter:
32" (813 mm)
Wheels / Diameter:
3" (76 mm)
Top Pad Diameter:
6" (152 mm)
Stand capacity:
18,000 lbs. (8,165 kg)
