Floor Jacks by Ranger

RFJ-2TX

SKU# 5150058

2-Ton (1.8-mt.) Long Reach "Euro-Style" Jack


This is a 1.8-mt., “Euro-style,” low-profile garage floor jack for hard-to-reach jack points. Our popular, low-profile floor jack is designed with an extended chassis, so it offers excellent leverage when jacking.

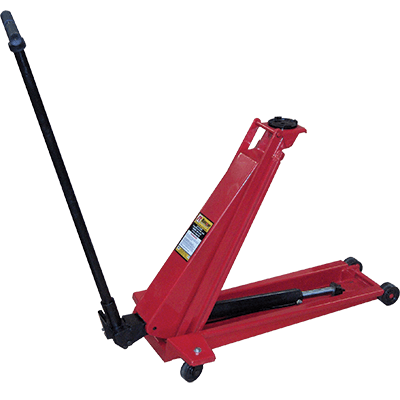

RFJ-2TX Low-Profile Floor Jack by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Low-Profile Floor Jack Designed with an Extended Chassis

With its longer reach, this jack works on virtually every style of vehicle. While it’s specially made for hard-to-reach jack points, the RFJ-2TX works equally well on all low-profile vehicle types. The Euro-style design has a minimal profile, so no matter what you're working on, correctly positioning the pad beneath a factory-approved jacking point is a cinch. Virtually every sports car, race car, light-duty truck and SUV can be serviced with the RFJ-2TX.

Swivel casters help the jack maneuver easily around the garage floor, while a quick-lift pedal speeds the entire jacking process. The RFJ-2TX also employs sealed hydraulics to prevent contamination and is crafted out of a rugged, heavy-gauge steel to ensure that it will stand the test of time, even with continuously heavy use. The handle is ergonomically designed to make jacking easy and stress-free on your body. As always, the Ranger logo means this floor jack has been over-engineered, test and approved to be absolutely safe at the max lifting capacity of 1,814-kg.

So, what is a “Euro-style” lift? The style of this floor jack addresses the fact that some European imports have extended chassis that make it difficult for floor jacks to safely reach the vehicles’ jacking points. Standard American domestic vehicles have easy-to-reach jack points or pinch-rails closer to the edge of the chassis. Our Euro-style floor jack has an extended-length, low-profile pad that makes reaching those imports, as well as some domestic models, safe and easy.

Features

  • 1,814-kg. lifting capacity
  • Alloy-plated ram
  • Welded lift arm assembly
  • Swivel casters for easy mobility
  • Professional model designed for heavy use
  • Heavy steel construction for maximum durability
  • Sealed hydraulics prevent contamination
  • Built-in safety overload valve
  • Features quick-lift pedal for fast lifting
  • Simple and safe to operate
  • Ergonomically designed handle
  • Ultra-low pad height

Specifications

RFJ-2TX specs diagram
Lifting Capacity
4,000 lbs. (1,814 kg)
Lowered Pad Height
3.5" (89 mm)
Raised Height
31.5" (800 mm)
Front Overall Width
11" (279 mm)
Rear Overall Width
19" (483 mm)
Chassis Length
37" (940 mm)
Shipping Weight
140 lbs. (64 kg)
Shipping Dimensions
43" x 20" x 11" (1,092 mm x 508 mm x 279 mm)
