XPR-12CL-LTA

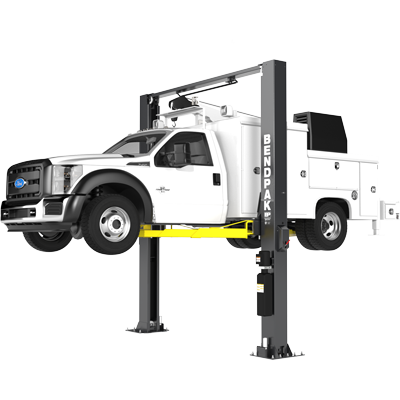

XPR-12CL-LTA Two-Post Lift Offers Long-Reach, Heavy-Duty Lifting Capability

Finding the lift points on bigger trucks and vehicles with a two-post lift can often be a challenging procedure. When lift arms are too short, they need to be moved closer together to reach the vehicle lift points and this makes it hard to find the vehicle’s center of balance on especially long wheelbases. But the new BendPak XPR-12CL-LTA solves this problem and allows you to reach even the longest, most difficult wheelbases in the industry. The XPR-12CL-LTA features three-stage telescoping lift arms with a 1,828 mm maximum range, extending even further than the 58” on our standard XPR-12CL two-post lift series. This broader option allows you to find the center of balance on the biggest trucks around, giving you the versatility and power to safely lift any vehicle up to its 5,443-kg. capacity.

Despite its length and nature, the XPR-12CL-LTA wasn’t just designed for hard-to-reach lifting points. Though its capable construction can handle bulkier and heavier trucks and even heavy-duty commercial vehicles, the XPR-12CL-LTA can adapt to fit any project in your garage. The three-stage telescoping arms collapse to standard length for rapid changes to reach standard, and compact vehicles of any size; and with its user-friendly controls and top-of-the-line safety measures, this lift is the perfect companion for any commercial garage.

The XPR-12CL-LTA is also a clearfloor two-post lift, allowing you ease of movement underneath. With clearfloor lifts, the equalization beam is overhead providing ample room for shop equipment like toolboxes, transmission jacks, oil drains or any other tool you may need nearby while you work. With the unique options and characteristics expected of any BendPak two-post lift, the XPR-12CL-LTA’s capabilities are as far-reaching and versatile as its lifting arms.

The XPR-12CL-LTA is ALI Certified

The Automotive Lift Institute (ALI) is the golden standard of automotive lift safety. With their ANSI accreditation, ALI is the only nationally recognized institute for lift certification. An ALI Certification assures you that the automotive lift in your garage meets with the quality and safety standards developed by ALI over the last 74 years of its operation. A lift that is ALI Certified had to meet with rigorous safety standards to determine the safety of its structural integrity, design, components, manual instruction and production facility.

Choosing an ALI Certified lift is important for your safety and the safety of your vehicles. You should know that the lift you’re relying on has been vetted by the top lift safety experts in the industry. Here at BendPak we understand the reliance placed on our lifts, and make our products with quality and safety at the forefront of production. With its ALI Certification, you can be sure that not only is the XPR-12CL-LTA an innovative lift, but it was built to last.

Lift Carriages Strengthened to Handle Long Reach

Along with its extended reach, the XPR-12CL-LTA features extra carriage strength to counter the extra weight of the extra-long arm.

Optional column extension

BendPak can increase your overhead clearance to 4,876 mm overall height to maximize the number vehicle types you can service in this weight class.

Quality assurance for heavy-duty lifting

When you buy BendPak, you can expect a significant boost in performance and lift operation life expectancy because your lift is built to be the last one you ever purchase. No one surpasses us in quality and safety. That’s why when you get one of our lifts, you get more than just a great product. You get peace of mind. That’s the benefit of owning a BendPak.

Triple-telescoping arm set

Three-stage front and three-stage rear arms provide greater maximum reach, as well as superior minimum retraction. Use this super-duty lift system for raising standard passenger vehicles and heavy-duty trucks.

Low-profile, dropped-end frame contact pads

Despite the higher lift capacity, the XPR-12CL-LTA makes it just as easy to get under your low-profile. This is because the two-post lift arms are designed to be versatile with virtually all vehicle types.

16-Piece adapter set / standard

Others might charge extra for these necessary adapters, but they're standard with every XPR-12CL-LTA. The multi-piece set includes four, 6" stackable adapters; four, 76 mm stackable adapters; four polyurethane contact pads; and four frame cradle pads. It’s ideal for trucks and vans with running boards or auxiliary fuel tanks.

Lowered arm tube supports

A heavy-duty two-post lift has different dimensions than our smaller lifts, which means our design needs to ensure that all vehicle frames, especially the frames of low-hanging doors, have sufficient clearance to open their doors while the lift is in operation.

Automatic arm restraints

When the lifting arms rise, arm restraints automatically engage even the largest vehicle. When the lift descends, the restraints release. No matter the size of your load, it will be safe, sturdy and virtually immovable.

Taller lift carriages

We build our lift columns tall in order to reduce the load stress placed on each column. With a 4,318 mm column height, which is taller than many of our competitors, BendPak remains the more durable option for your garage.

Maintenance-free load bearings

BendPak makes its load bearings out of UHMW (ultra-high molecular weight polyethylene) to ensure they last the entire life of the lift. They never require lubrication (unlike roller bearings) and are resistant to harsh chemicals and other environmental hazards.

Single-piece columns

Combined 5,443-kg. capacity columns are each made out of a single piece of steel, so each piece stays stronger and lasts longer.

Dual Direct-Drive technology

By utilizing two, low-pressure HVLP direct-drive cylinders, we've eliminated the need for lifting chains or screw mechanisms commonly found on other lift designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High volume at a low pressure equates to less workload placed on the entire hydraulic system.

Single-point safety release

The car lift's safety release is single-point and easy to use. We keep our operations simple, so you stay safe at all times.

On the level

In order to maintain a safe garage environment, every XPR-12CL-LTA two-post lift comes with our dual-synchro equalization system. This keeps the lifting mechanics equal on both sides of the lift at all times.

Auto-shutoff

A rigid, padded safety shutoff bar automatically stops the lift should a vehicle come in contact with overhead structure.

High-speed hydraulics

Free-flow, high-pressure 9.5 mm hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds for enhanced productivity.

Industrial-grade hydraulic cylinders

Integrated into every XPR-Series hydraulic cylinder is a one-piece, pilot-fitted, machined steel piston that is wrapped with specially designed, pressure-loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .0254 mm diametrically, to ensure superior cylinder operation and life. The better-designed, high-durometer, mechanically loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced that exceeds ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight and smooth—and last a very long time.
