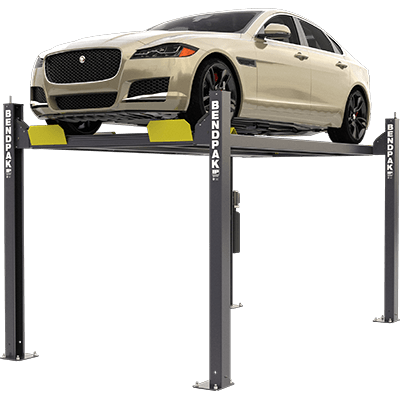

HD-7W

Dependable, Light-Duty 3,175 kg. Capacity Four-Post ​Lift

The 3,175 kg. capacity HD-7W is ideal for shops that want the versatility to park sports cars, sedans, light-duty trucks and SUVs in the same structure. There's even enough side clearance to accommodate larger truck mirrors. Even so, this lift is only slightly larger than a typical parking space. Due to its reduced footprint, as well as its ability to house a variety of vehicle types in a low-ceiling garage, the HD-7W is an extremely attractive parking and maintenance solution for both homeowners and professional technicians.

Dependable design

The HD-7W features four stainless steel wire ropes, as well as a lone hydraulic cylinder that remains tucked underneath the runway. This powerful cylinder ensures you get a super-durable design that requires minimal maintenance over time.

Dual-hub wire rope sheaves

Larger wire rope sheaves prevent undue wear-and-tear on the four-post lift's axles, wire rope and even the sheaves themselves. Dual-hub and oversized sheaves provide a safer product that lasts longer and costs less to maintain. The larger the sheave, the less friction against the components, so we make every single sheave larger than necessary. Typically speaking, the bigger the lift, the bigger the sheave!

Multi-level locking positions

Parking and service height is totally up to you. Every few inches, the columns will automatically lock into place; simply lower the runways onto the lock as they move over it. Push-button controls will release all four locks together.

Secondary safety locks

A secondary lock system acts as a slack-cable device that catches the runways and keeps your vehicle level in case any dangerous cable slack develops. The lift will not be operational until you have a chance to resolve the issue.

Heavy-duty aircraft wire rope

Extremely powerful stainless steel wire ropes are rated at 6,531 kg. each. They're called "aircraft quality" for a reason! The combined rating of these cables is more than 822% of the entire lift’s maximum lifting capacity, and all wire rope is fully enclosed within the lift structure.

Electric-hydraulic power system

A zero-service power unit is incorporated into the four-post lift structure. Dependable, long-lasting and extremely safe, it's always close at hand for your convenience.

Large base plates

254 mm x 305 mm base plates provide a stable yet minimal footprint for the HD-7W. Your four-post lift is as structurally sound as any car lift ever made.

Caster kit

A rugged, 4-piece caster kit makes your lift mobile, so you can get it out of the way for other service jobs or to simply park your vehicles in a different park of the garage. Foot-lock casters work with or without a vehicle raised on the runways.

Integrated design

For your safety and convenience, and to improve the aesthetics of your BendPak lift, the critical lifting components (e.g., airlines, safety latches and wire rope sheaves) are all fully enclosed within the columns of the lift.

Low-deck runways

Low-profile, ​114 mm high runways make it easy to load vehicles onto the lift. Lower runways mean less time driving up the approach ramps; the result is a safer, easier approach.

Longer approach ramps

The effectiveness of the lowered runways is bolstered by gentle approach ramps that won't damage low-riding vehicles. Extended-length approach ramps permit drivers of all experience levels to load vehicles onto the runways without scratching the front ends of low-riding cars.
