BendPak Car Lift Accessories

JP45

SKU# 5215825

2,041-kgs. Capacity / Telescoping Jack Tray


The JP45 bottle jack tray holds one or two bottle jacks (not included) that let you get a vehicle's wheels off the runways of a 4-post lift, making it easier to perform wheel and suspension work. Its telescoping arms allow to fit on most four-post lifts on the market.

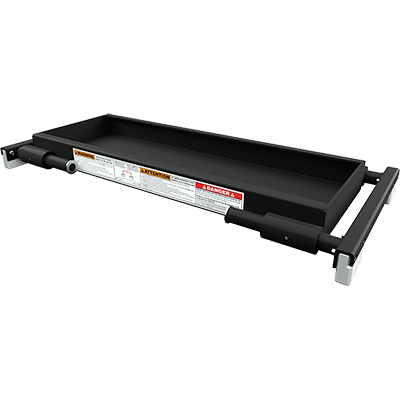

JP45 Telescoping Jack Tray
User Manual Download
Sales Sheet Download
Warranty Download

Telescoping Jack Tray Fits Most 4-Post Lifts

The JP45 telescoping jack tray makes it possible to lift your vehicle off the runways of a four-post lift giving you instant access to perform wheel maintenance. With a 4,500-lbs. weight capacity per tray, its capable of safely and securely holding a vehicle with your choice of bottle jacks (not included). The sturdy, over-built design of the telescoping arms allows it to fit most four-post lifts out there on the market with an arm span of 35.75" to 44".

The telescoping jack tray platform is ideal for use with one or two bottle jacks, which are not included with the kit. This gives you the flexibility of choosing which bottle jack is right for your application. If using only one jack, position it in the middle of the tray and do not exceed 3,500-lbs. If using two jacks, make sure they're spaced at least 12" apart from each other and not exceed 2,250-lbs. per jack (the maximum capacity of the JP45). With the bottle jacks in position, you're able to safely lift your vehicle from the runways giving you full access to your wheels, just like a four-post bridge jack.

The heavy-duty and rugged construction of the JP45 telescoping jack tray provides you with stable and durable support for any lifting situation up to 4,500 lbs. Its sliding blocks allow you to effortlessly move your platform between 4-post lift runways to get the exact position you need to perform work. The JP45 is the must have car lift accessory for any shop with a four-post lift.

Looking for a sliding jack tray with more capacity? Check out the JP-6 Sliding Jack Tray.

Features

JP45 Telescoping Jack Tray Specs
Specifications and Dimensions Specifications
Warranty 5-2-1 Warranty
Lift Balancing Safety Balancing Safety
Best Car Lift Guide Best Car Lift Guide
Things to know Buying a Car Lift

JP45 Specifications

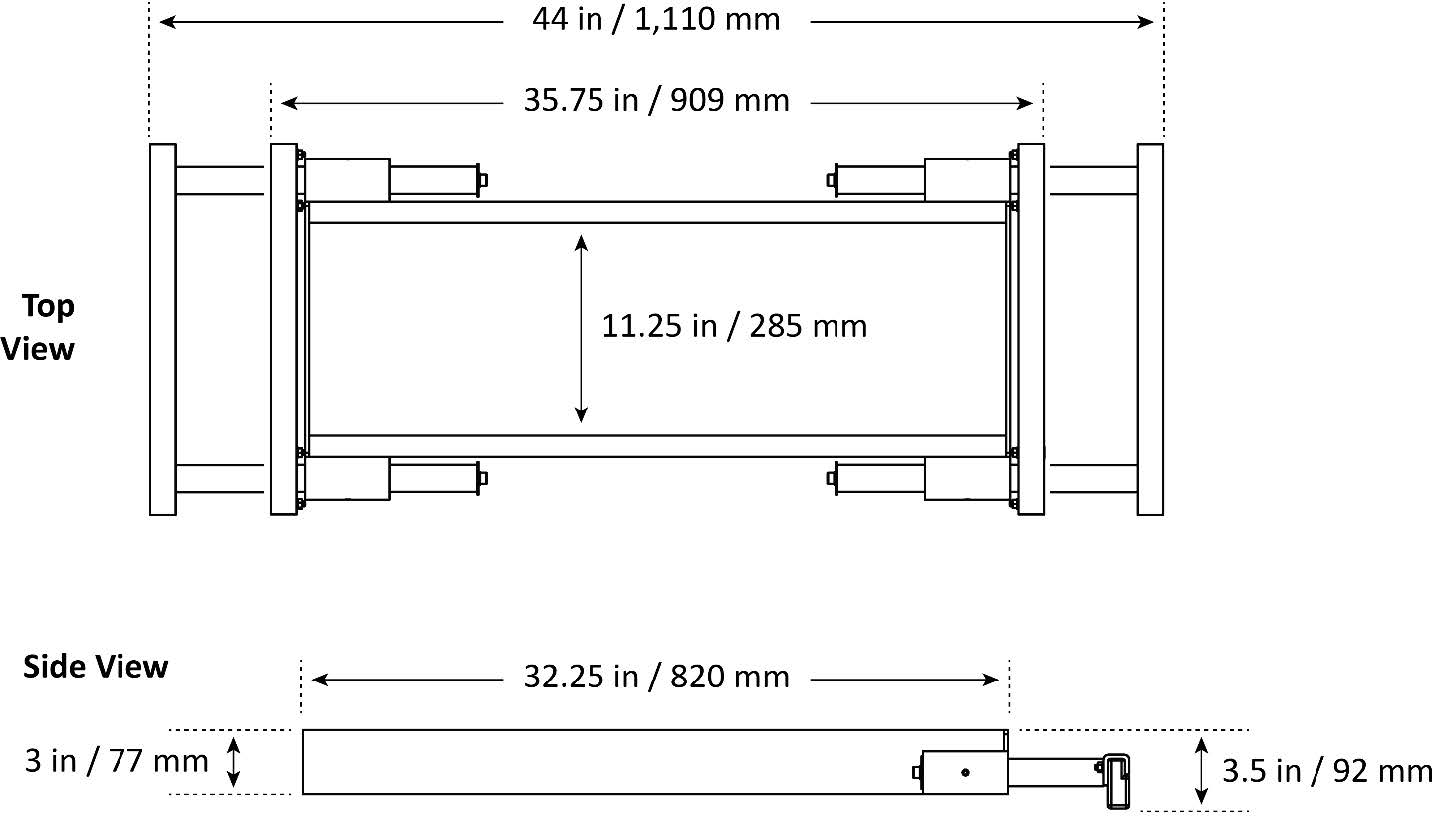

JP45 specs diagram
